• Body, standard
• Rear wheel drive
• Battery, heavy-duty 770 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Alternator, 145 amps
• Frame, full-length box ladder-type
• Suspension, front independent with coil springs and stabilizer bar (Requires *G***05 models.)
• Suspension, rear hypoid drive axle with multi-leaf springs
• Steering, power
• Brakes, 4-wheel antilock, 4-wheel disc
• Fuel tank capacity, mid-frame and approximately 31 gallons (117.3L)
• Exhaust, aluminized stainless-steel muffler and tailpipe

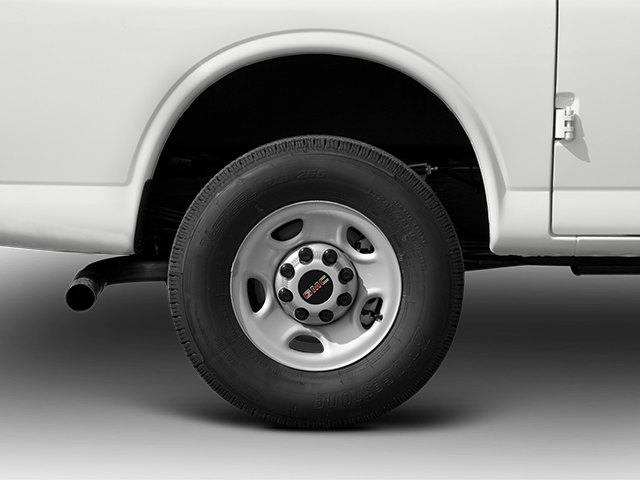

• Wheels, 4 - 17" x 7" (43.2 cm x 17.8 cm) steel, includes steel spare (Requires **13405 models. Includes (P03) Wheel trim, chrome center cap.)
• Tires, front P245/70R17 all-season, blackwall (Requires **13405 models standard tire.)
• Tires, rear P245/70R17 all-season, blackwall (Requires **13405 models standard tire.)
• Tire, spare P245/70R17 all-season, blackwall (Requires **13405 models standard tire.)
• Door, swing-out passenger-side, 60/40 split
• Wheel trim, chrome center cap (Included on *G23*05 models. Included with (NX7) 4 - 17" x 7" (43.2 cm x 17.8 cm) steel wheel.)
• Wheel, full-size steel spare
• Trim, rear body-colored halo (replaces standard black panel located above rear tail lamps) (Not available with (41U) Onyx Black or (74U) Fire Red or (TGK) SEO solid paint. These colors will receive a Black halo.)
• Bumpers, front and rear chrome with step-pad

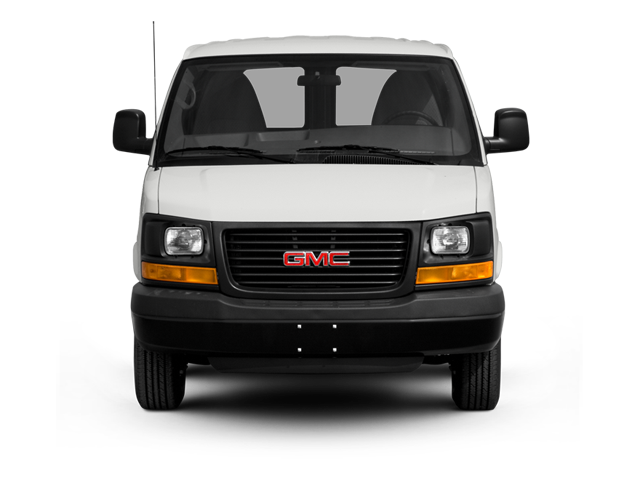

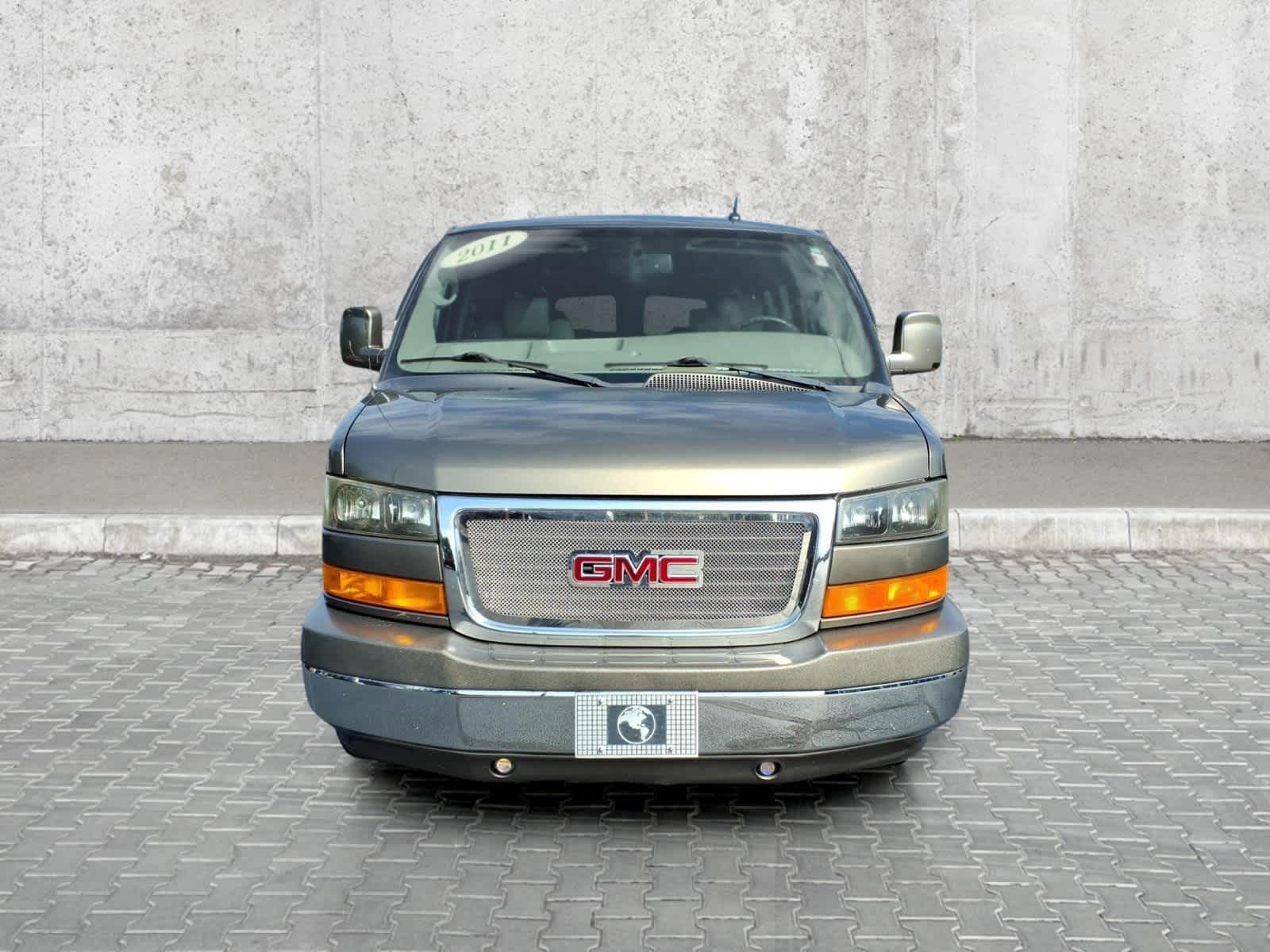

• Grille, chrome with dual composite halogen headlamps
• Mirrors, outside heated power-adjustable, Black, manual-folding
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver- and front passenger-side glass)
• Glass, swing-out rear cargo door windows
• Glass, swing-out rear side door and rear door window
• Glass, fixed rear doors and side cargo doors
• Wipers, front intermittent wet-arm with pulse washers
• License plate kit, front
• Door, swing-out driver-side, 60/40 split (Requires **13405 and *G23405 models.)

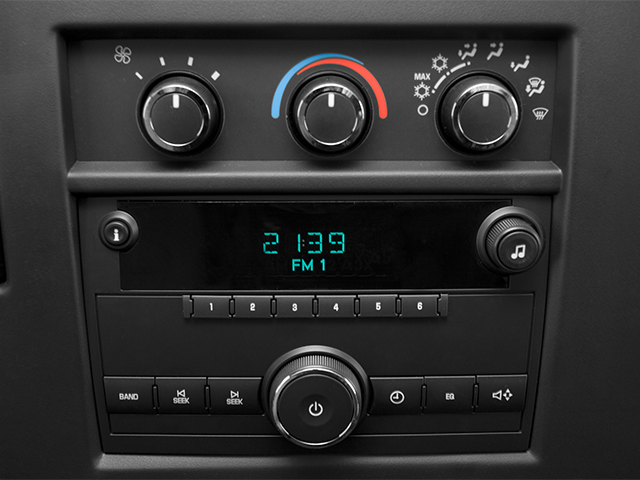

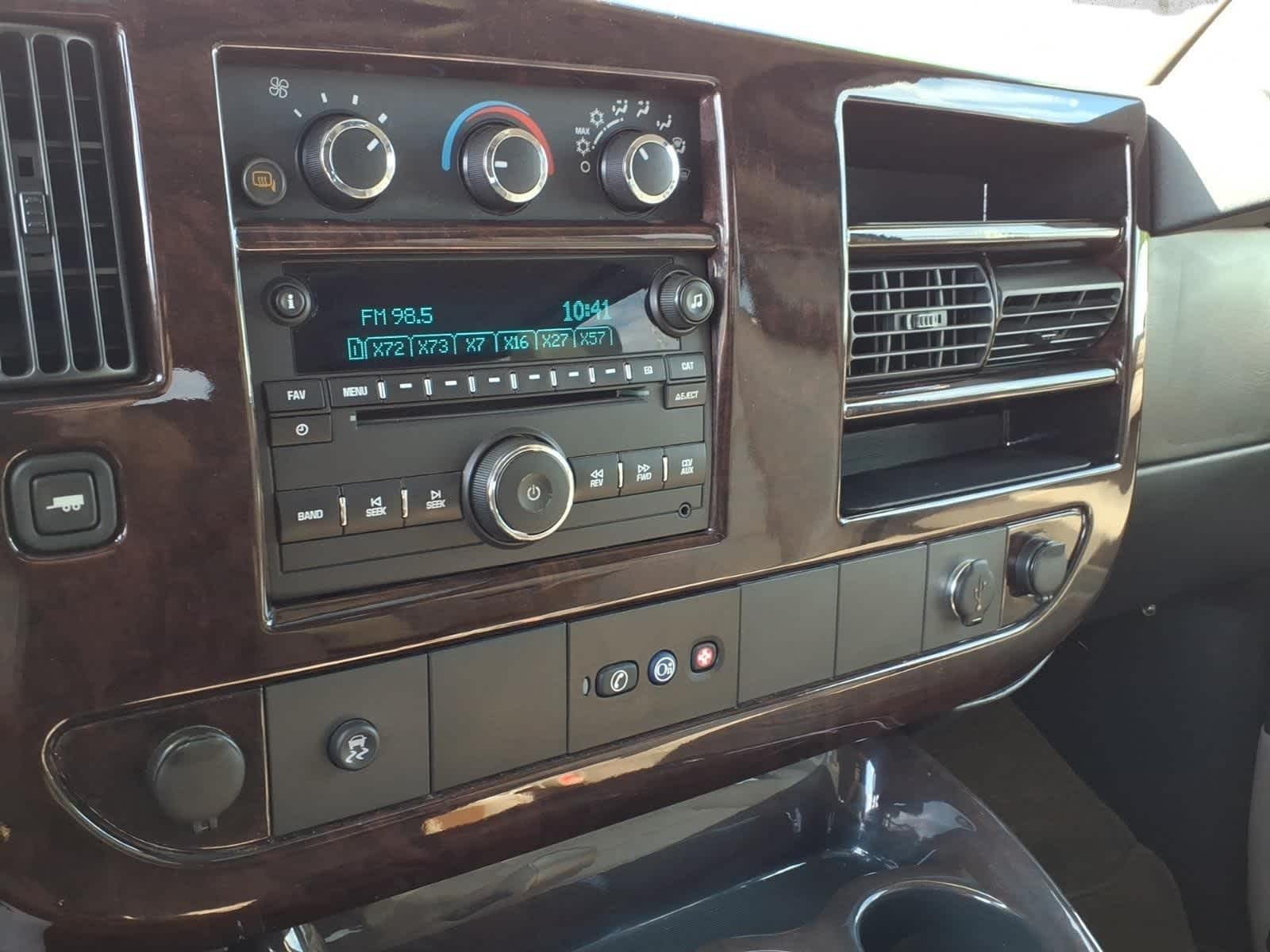

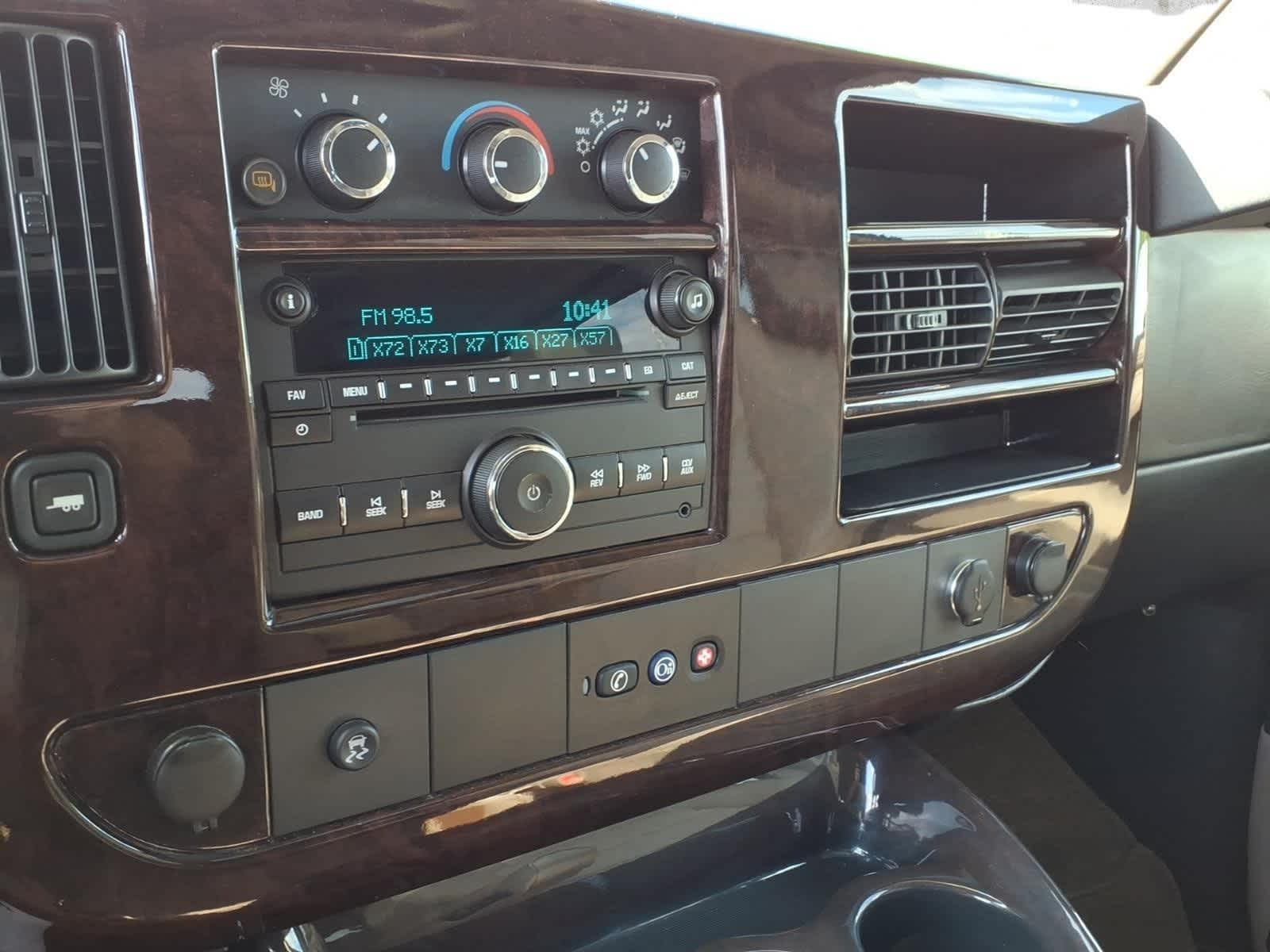

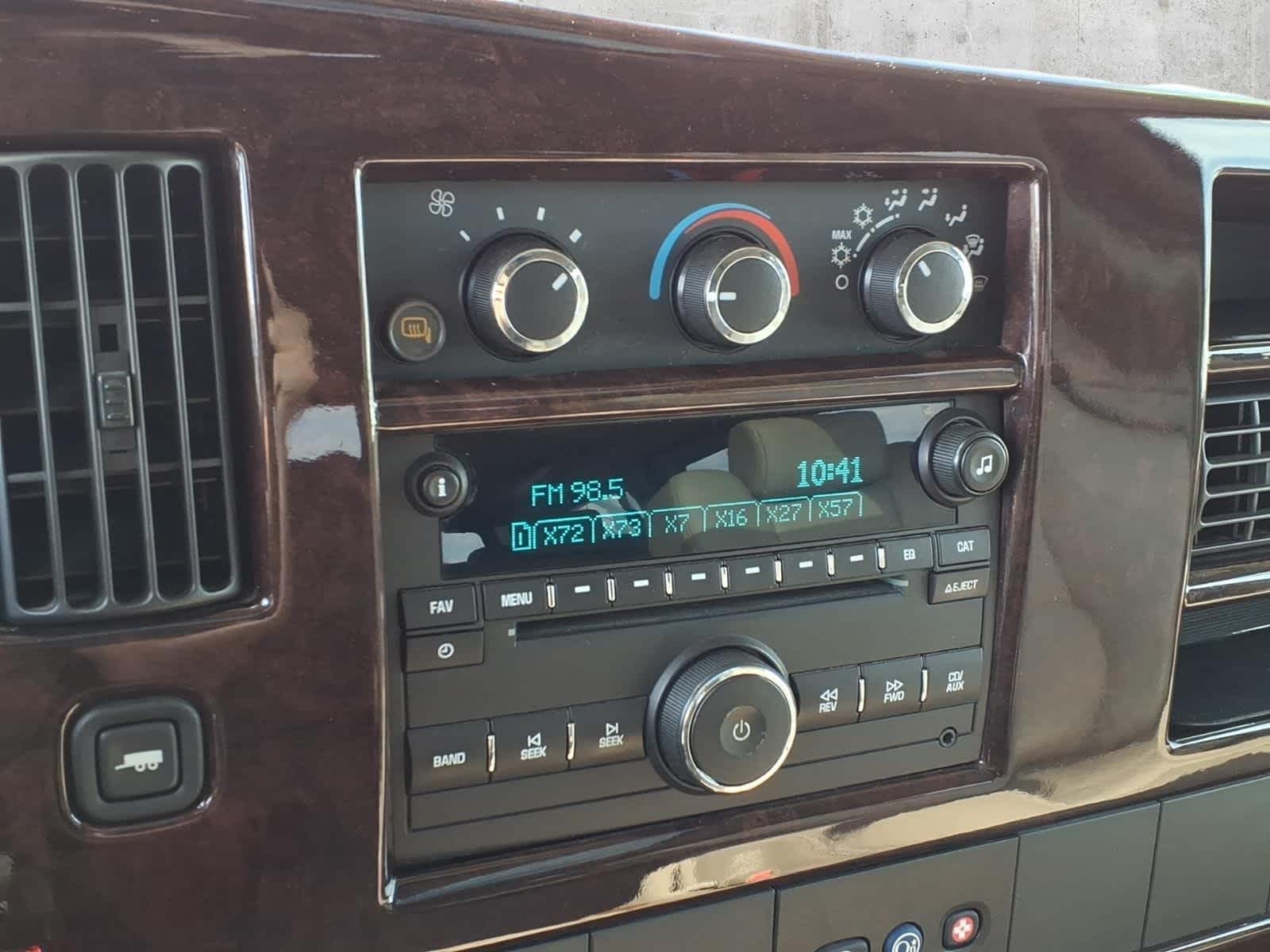

• Audio system, AM/FM stereo with CD player seek-and-scan, digital clock, TheftLock and random select (Not available with (NP5) leather wrapped steering wheel)

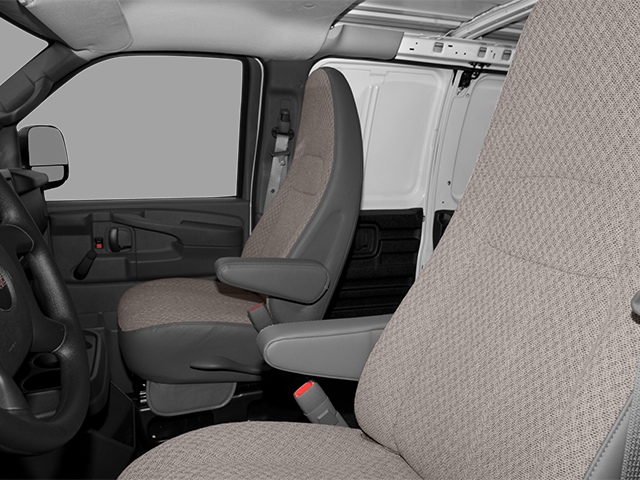

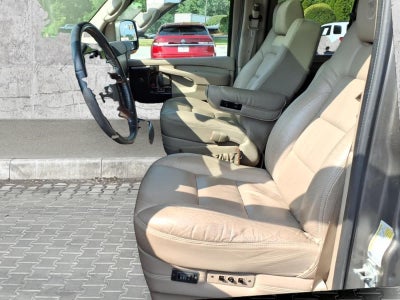

• Seat, temporary driver includes driver-and passenger-side safety belts and seat risers
• Seat, temporary driver
• Air conditioning, single-zone manual (Includes quick connectors for rear air conditioning.)
• Floor covering delete

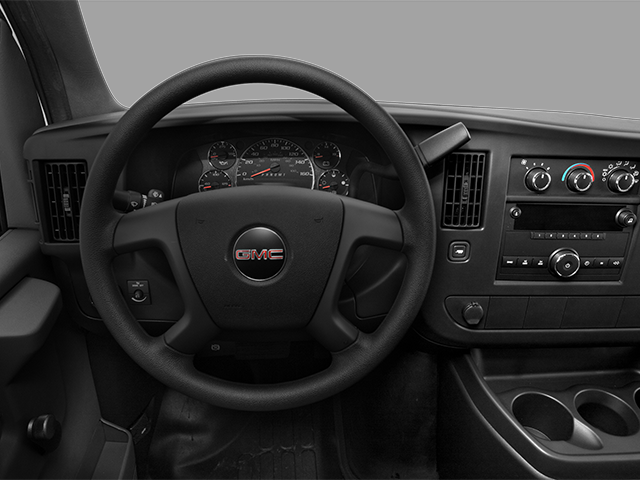

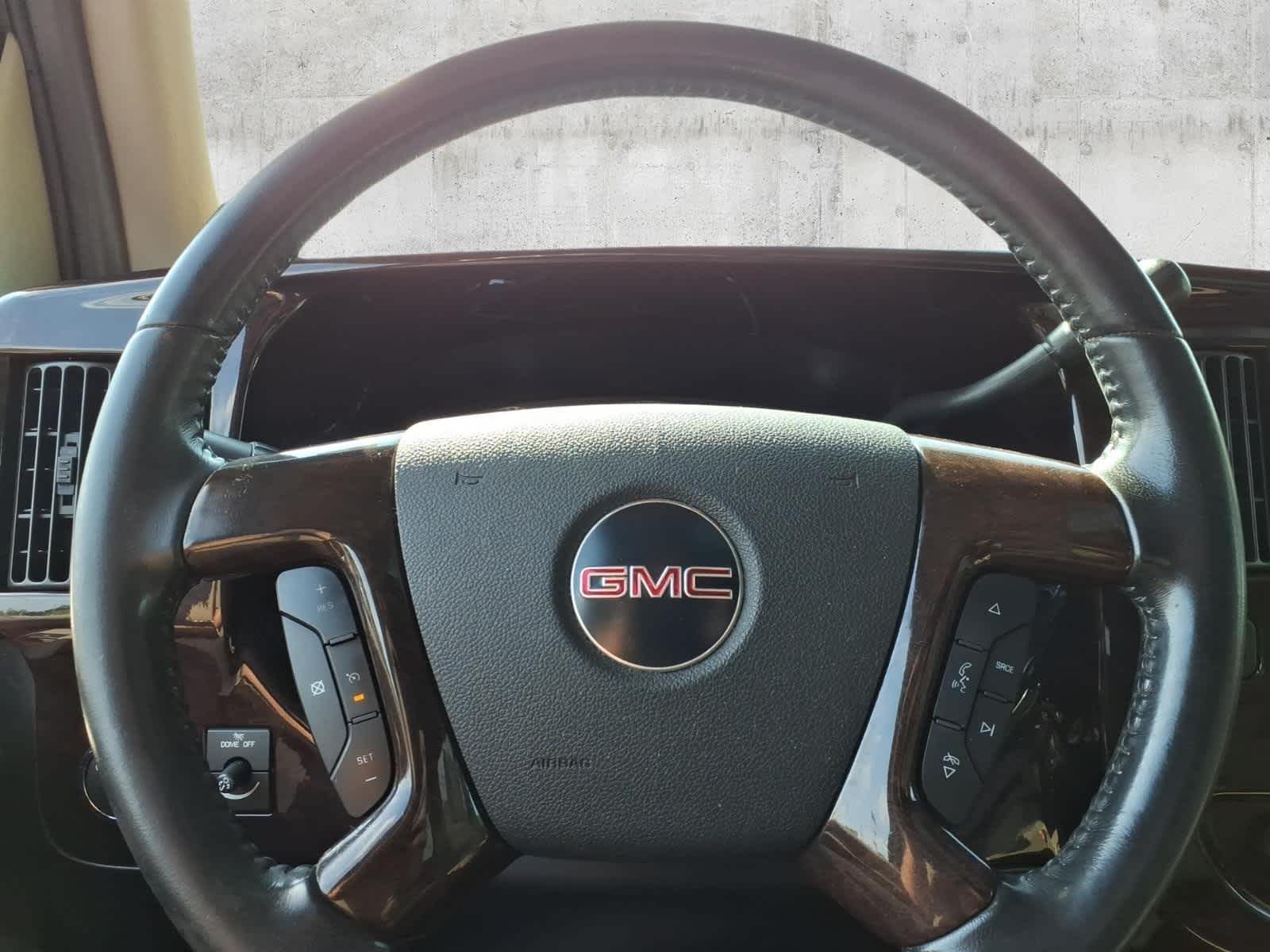

• Steering wheel, steel sleeve column with theft-deterrent locking feature
• Oil life monitor
• Warning tones, headlamp on and key-in-ignition
• Compass, 8-point digital located in the Driver Information Center
• Tow/haul mode selector, instrument panel-mounted
• Windows, power
• Door locks, power with lock-out protection
• Remote Keyless Entry with 2 transmitters and remote panic button
• Remote vehicle starter system
• Theft-deterrent system, vehicle, PASS-Key III

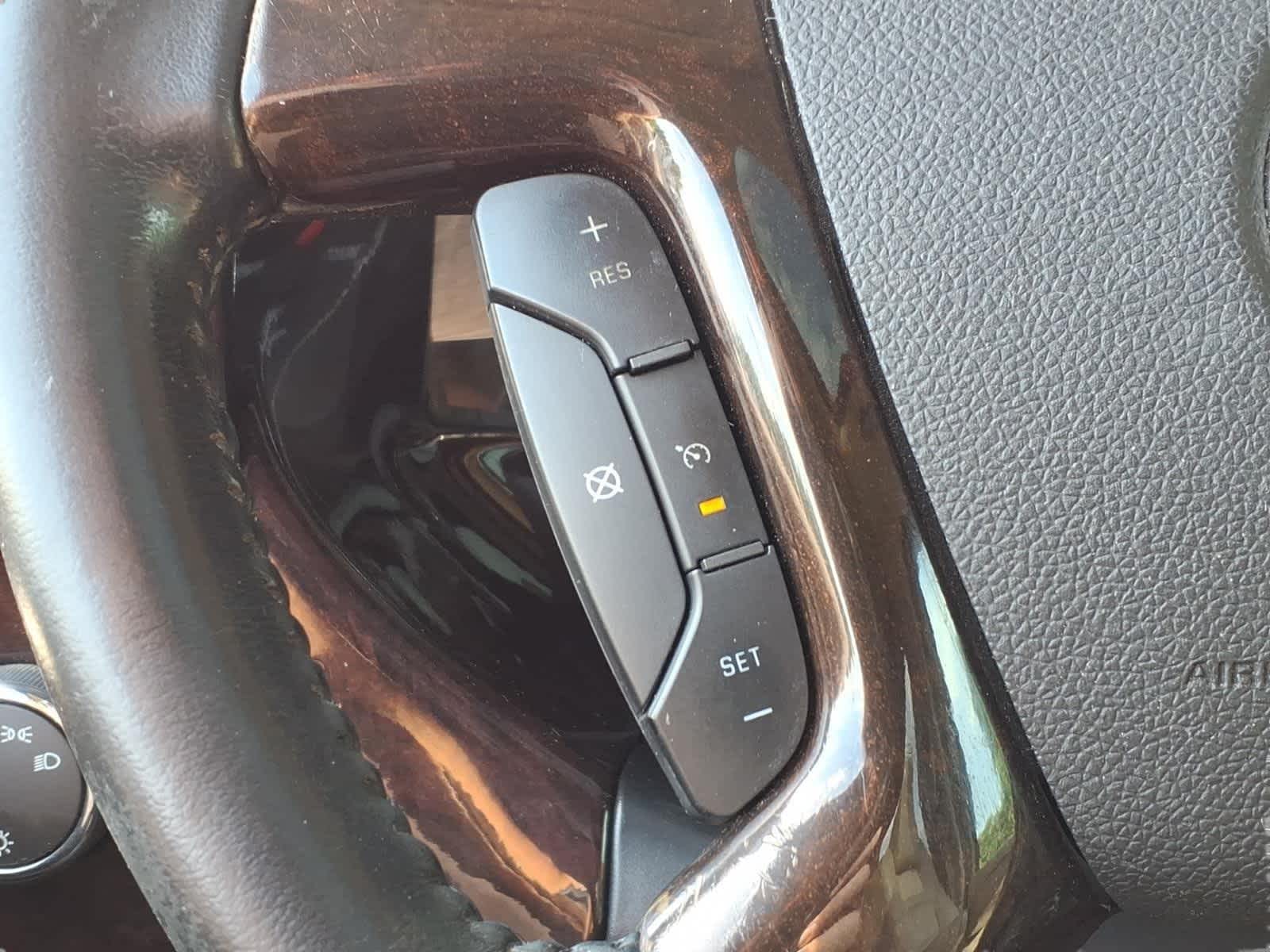

• Cruise control
• Air conditioning, rear
• Heater, rear auxiliary
• Defogger, side windows

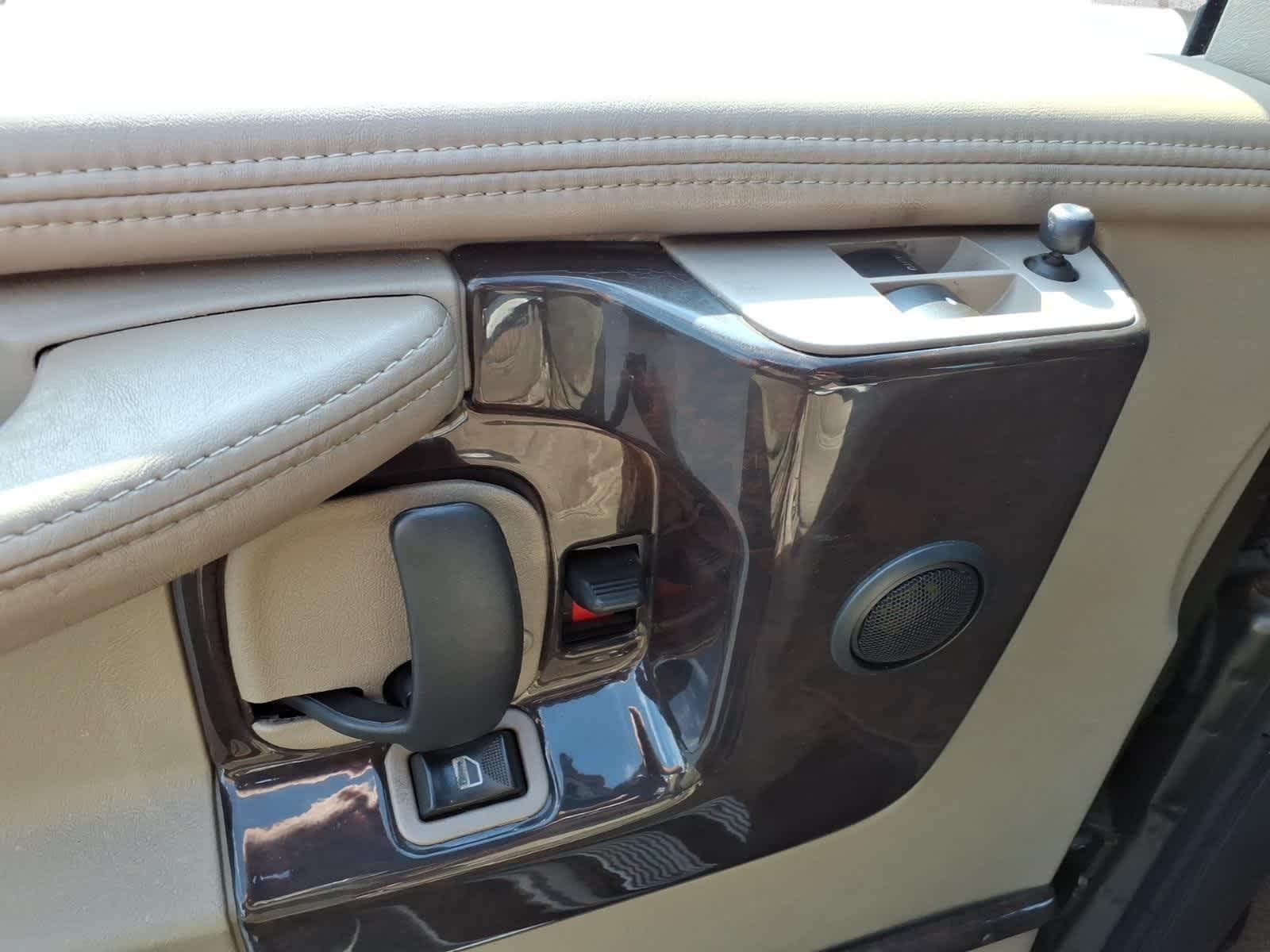

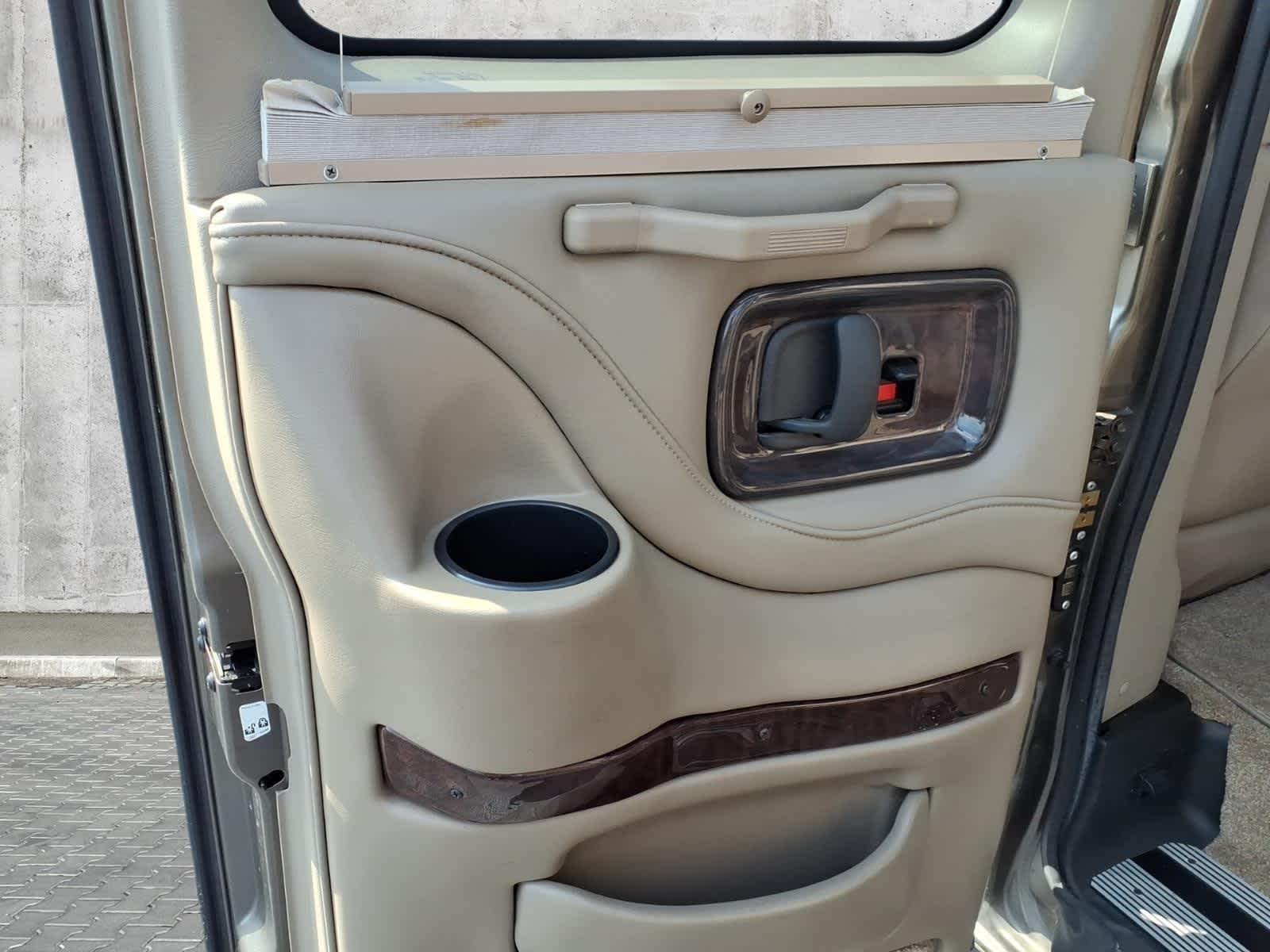

• Trim panels, front, side and rear doors

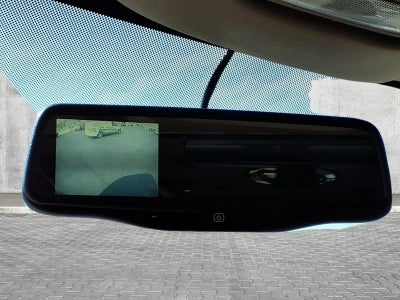

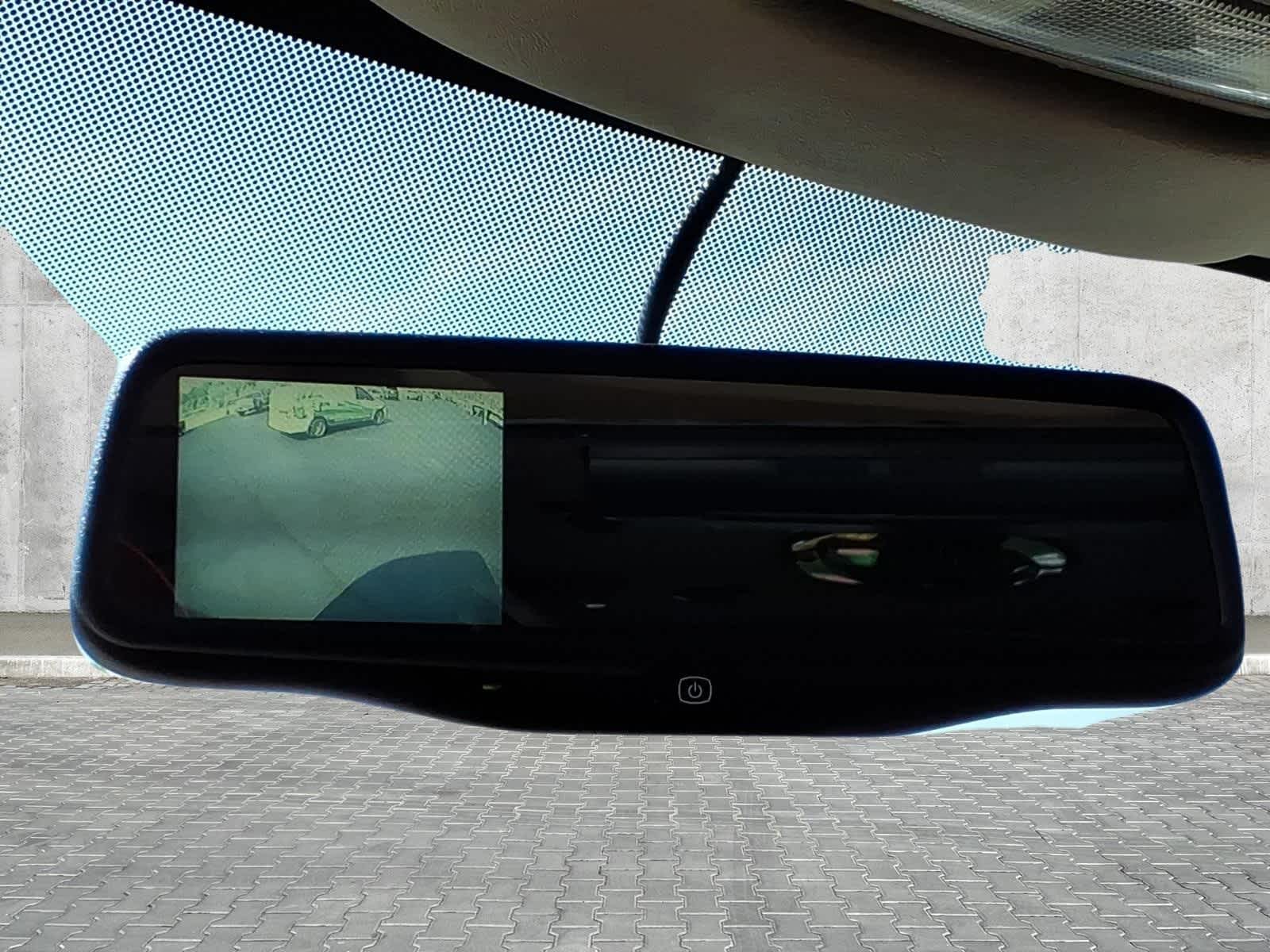

• Mirror, inside rearview manual day/night
• Visors, driver and front passenger, padded with cloth trim and dual vanity mirrors, illuminated on passenger-side
• Assist handle, front passenger

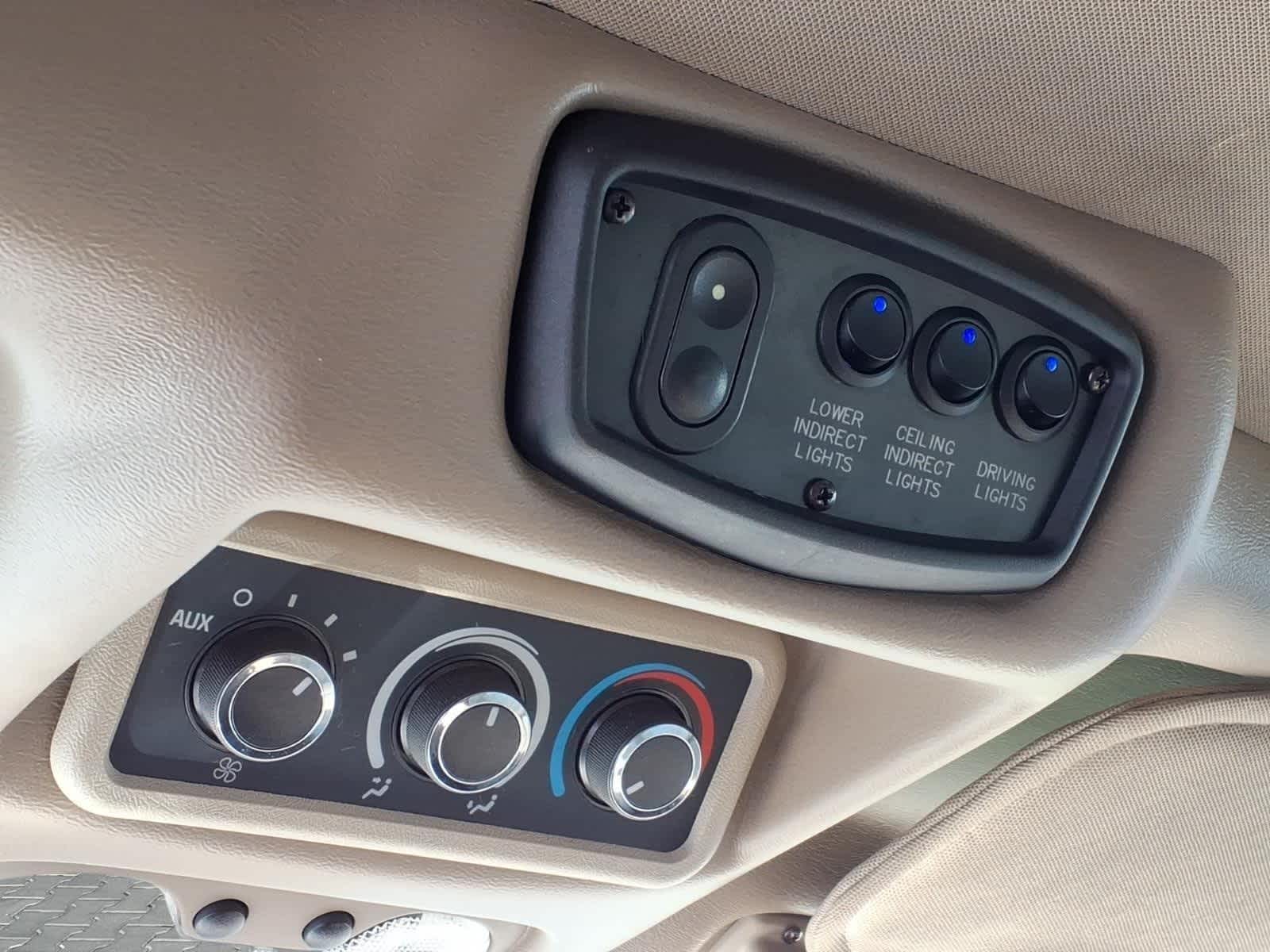

• Lighting, auxiliary with reading and underhood lights

• StabiliTrak, stability control system
• Door beams, steel-side
• Daytime Running Lamps
• Air bags, frontal, driver and right-front passenger (Includes passenger-side air bag deactivation switch on models with (C6P) 8600 lbs. (3901 kg) GVWR and above. Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat in the appropriate infant, child or booster seat. See the Owner's Manual and child safety seat instructions for more safety information.)
• OnStar, 6 months of Directions and Connections plan includes Automatic Crash Response, Emergency Services, Crisis Assist, Stolen Vehicle Assistance including Remote Ignition Block, Remote Door Unlock, Turn-by-Turn Navigation with Destination Download (requires navigation radio) and OnStar eNav (where available), OnStar Vehicle Diagnostics, Roadside Assistance, Remote Horn and Lights, and Hands Free Calling. (Also includes Stolen Vehicle Slowdown. Visit onstar.com for details and system limitations.)
• OnStar Turn-by-Turn Navigation
• Automatic Air Bag Deployment Response
• Stolen Vehicle Assistance
• Tire Pressure Monitoring System (does not apply to spare tire)

• Incomplete vehicle certification

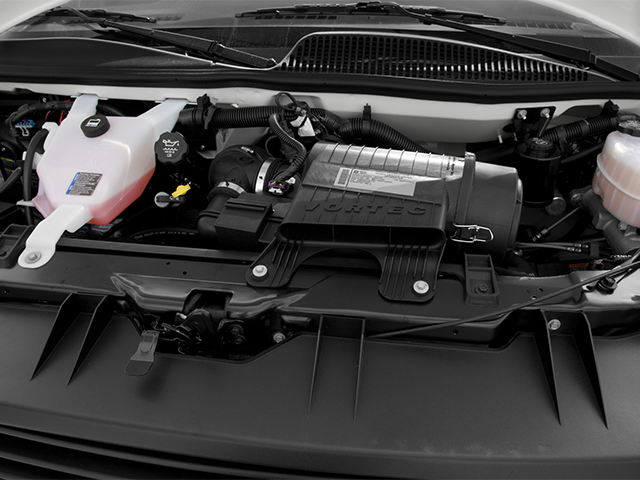

ENGINE, VORTEC 5.3L V8 SFI FLEXFUEL

• (310 hp [231.1 kW] @ 5200 rpm
• 334 lb-ft of torque [450.9 N-m] @ 4500 rpm) (STD)

• AG1
• DE7
• LMF
• M30
• N88
• UPF
• US8
• USR
• W1Y

• Vehicle
• Rear Door Type: Dual Swing-out
• Mileage
• Fuel Economy Est-Combined (MPG): 14
• EPA Fuel Economy Est - City (MPG): 13
• EPA Fuel Economy Est - Hwy (MPG): 17
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 770
• Maximum Alternator Capacity (amps): 145
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 14.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3600
• Gross Axle Wt Rating - Rear (lbs): 4000
• Curb Weight - Front (lbs): 2990
• Curb Weight - Rear (lbs): 2166
• Gross Vehicle Weight Rating Cap (lbs): 7300
• Gross Combined Wt Rating (lbs): 12000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6700
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1005
• Maximum Trailering Capacity (lbs): 6700
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Hypoid Multi-Leaf
• Spring Capacity - Front (lbs): 3600
• Spring Capacity - Rear (lbs): 4000
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 3600
• Axle Capacity - Rear (lbs): 4000
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): 1.30
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.0 x 1.1
• Rear Brake Rotor Diam x Thickness (in): 13.0 x 1.2
• Tires
• Front Tire Order Code: XPR
• Rear Tire Order Code: YPR
• Spare Tire Order Code: ZPR
• Front Tire Size: P245/70R17
• Rear Tire Size: P245/70R17
• Spare Tire Size: P245/70R17
• Front Tire Capacity (lbs): 2004
• Rear Tire Capacity (lbs): 2004
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7.0
• Rear Wheel Size (in): 17 x 7.0
• Spare Wheel Size (in): 17 x 7.0
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr-Assisted
• Steering Ratio (:1), On Center: 17.2
• Steering Ratio (:1), At Lock: 17.2
• Turning Diameter - Curb to Curb (ft): 43.4
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31
• Fuel Tank Location: Mid-frame
• Doors
• Side Door Type: Swing-out
• Exterior Dimensions
• Wheelbase (in): 135.0
• Length, Overall w/rear bumper (in): 224.1
• Width, Max w/o mirrors (in): 79.2
• Height, Overall (in): 83.7
• Overhang, Front (in): 39.7
• Overhang, Rear w/bumper (in): - TBD -
• Ground to Top of Load Floor (in): 28.4
• Ground Clearance, Front (in): 8.0
• Ground Clearance, Rear (in): 7.4
• Rear Door Opening Height (in): 49.4
• Rear Door Opening Width (in): 57.0
• Side Door Opening Height (in): 47.9
• Side Door Opening Width (in): 44.1
• Step Up Height - Front (in): 20.4
• Step Up Height - Side (in): 20.6

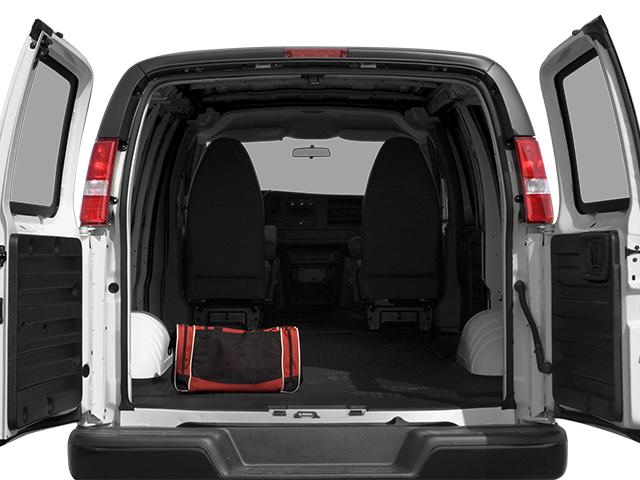

• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): 153.6
• Cargo Area Length @ Floor to Seat 1 (in): 124.6
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 52.7
• Cargo Box (Area) Height (in): 52.9
• Cargo Volume (ft³): 239.7
• Interior Dimensions
• Passenger Capacity: 1
• Front Head Room (in): 39.8
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 68.8
• Front Hip Room (in): 65.5
• Summary

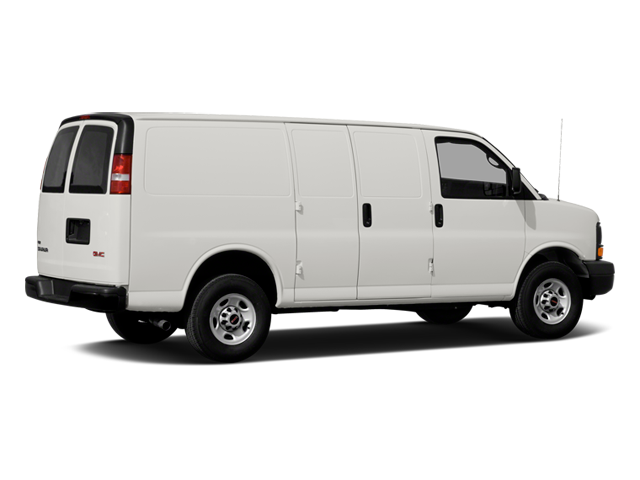

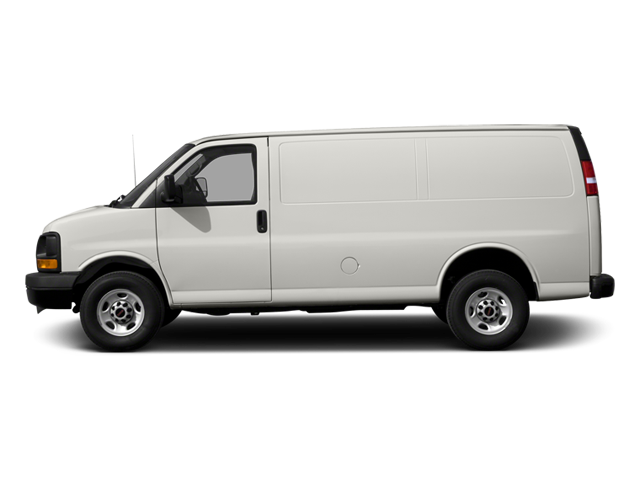

• Vehicle Name: GMC Savana Cargo Van
• Body Style: 1500 Cargo Van 135" WB w/YF7
• Body Code: ZW9
• Emissions
• EPA Greenhouse Gas Score: 1
• Tons/yr of CO2 Emissions @ 15K mi/year: 12.4
